The complete guide on Azure Landing Zone Architecture

Learn how a Landing Zone simplifies governance, enhances security, and optimizes your Azure cloud environment for efficiency and future growth

HomeCloud Landing ZoneThe complete guide on Azure Landing Zone Architecture

Cloud adoption offers transformative potential, but organizations can face challenges like security risks, complex resource management, and inconsistent deployments. Azure Landing Zones provide a powerful solution, streamlining your cloud journey and establishing a secure, well-managed environment. These pre-configured environments establish security, governance, and standardized practices from the outset.

Advertisement

Imagine a meticulously planned city with designated zones for residential areas, commercial districts, and parks. Azure Landing Zones function similarly, creating a well-organized and secure “cloud city” for your IT infrastructure. This blog post delves into these specifics of Azure Landing Zones. We’ll explore:

  • Design Principles and Design Areas: We’ll unpack the core principles guiding the creation of landing zones and explore the eight key design areas that ensure a secure and efficient cloud foundation.
  • Core Components: Discover the essential components that make up a typical Azure Landing Zone.
  • Deployment Options: We’ll discuss the various methods available for deploying Azure Landing Zones, catering to different technical skillsets and project requirements.
  • Best Practices: Learn how to implement Azure Landing Zones with optimal efficiency and security through proven best practices.

By understanding Azure Landing Zones, you’ll gain valuable insights into how they streamline and secure your organization’s cloud adoption journey.

1. Azure Landing Zone Overview

An Azure Landing Zone is a pre-configured environment within Microsoft Azure, designed to provide a secure and scalable foundation for your cloud workloads. It’s built on best practices and design principles, offering a structured approach for deployment and management. Think of it as a customizable blueprint for your Azure success.

Read: What are Cloud Landing Zones and why they are important ?

Purpose and Benefits

Azure Landing Zones streamline your cloud strategy with:

  • Enhanced Security and Governance: Enforce security best practices and role-based access control (RBAC) to protect your resources.
  • Scalability and Efficiency: Organize resources for easy management and scaling as your cloud footprint grows.
  • Standardized Deployments: Accelerate application onboarding and reduce errors with consistent templates.
  • Reduced Costs: Optimize resource utilization and leverage cost management tools to control spending.
  • Faster Time to Market: Deploy applications faster with a streamlined, secure foundation.

Azure Landing Zones, as the cornerstone of your Azure cloud strategy, provide a pre-configured, secure foundation that accelerates cloud adoption, simplifies compliance, optimizes costs, and empowers you to focus on innovation. By offering a ready-to-go environment with built-in governance and cost management features, landing zones streamline cloud migration, ensure regulatory adherence, and empower you to develop and deploy groundbreaking applications faster.

2. Azure Landing Zone Key Design Principles

An Azure Landing Zone isn’t just a collection of resources; it’s a meticulously designed environment built on a foundation of best practices. These best practices are embodied in a set of key design principles that guide the creation of a secure, scalable, and well-managed cloud platform. Let’s explore some of the most crucial principles, along with the potential consequences of deviating from them:

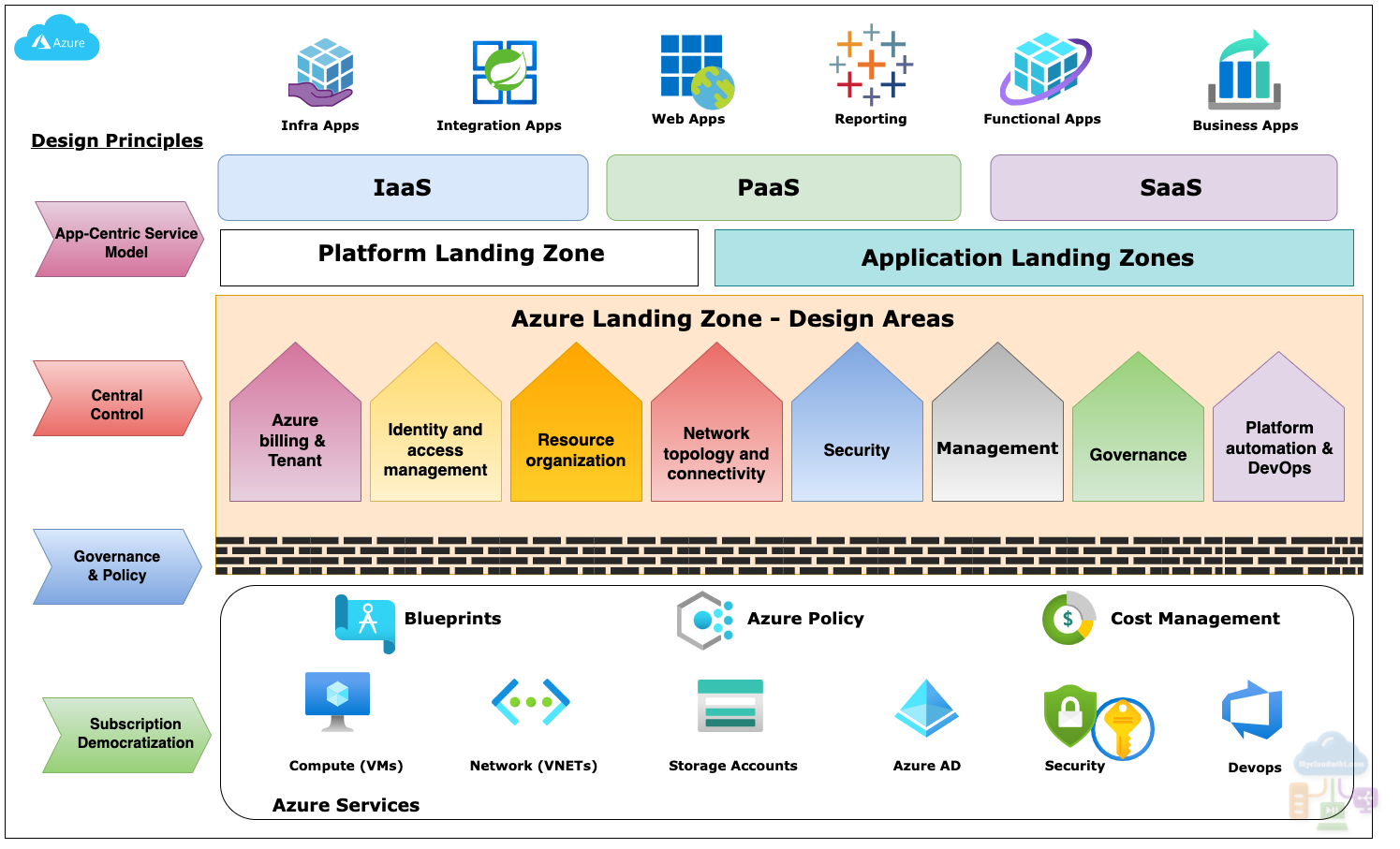

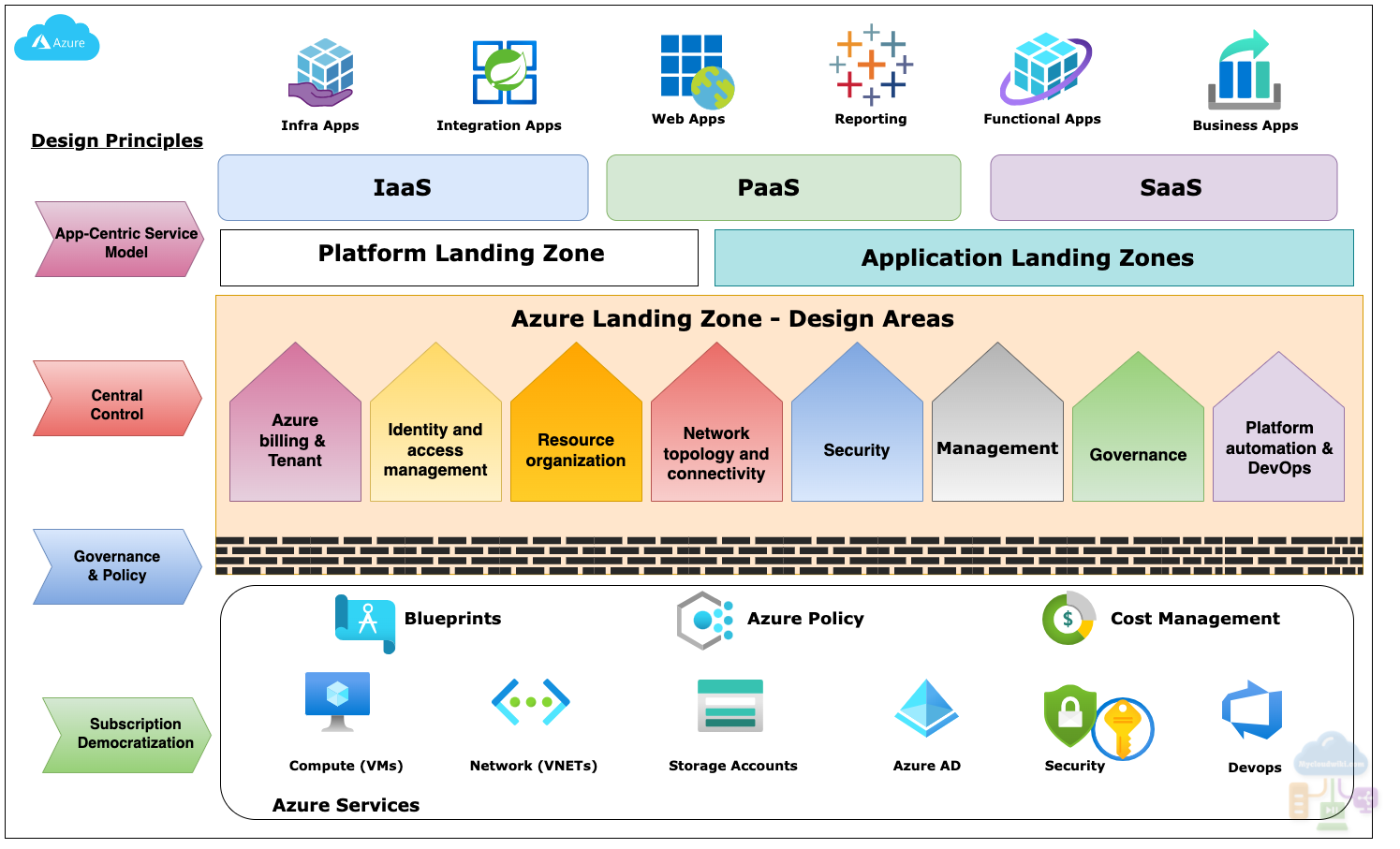

Azure LZ Design Areas

1. Subscription Democratization:

This principle encourages the creation of dedicated subscriptions for specific purposes. Imagine having separate subscriptions for development, testing, and production environments, aligning your resource allocation with your business needs.

Principle: Create dedicated subscriptions for specific purposes (development, testing, production) to align resource allocation with business needs.

Potential Consequences of Deviation:

  • Increased complexity: Managing resources scattered across generic subscriptions becomes difficult.
  • Security risks: Inconsistent access control across subscriptions can elevate security vulnerabilities.
  • Inefficient cost management: Difficulty in identifying and optimizing costs associated with specific workloads.
2. Policy-Driven Governance:

Security and compliance are paramount in the cloud. This principle emphasizes the use of Azure Policy to establish guardrails. These guardrails are essentially pre-defined rules that govern resource creation, access control, and spending, ensuring adherence to your organization’s security and compliance requirements.

Principle: Use Azure Policy to establish guardrails (pre-defined rules) that govern resource creation, access control, and spending, ensuring adherence to security and compliance requirements.

Potential Consequences of Deviation:

  • Security breaches: Lack of enforced security policies opens the door to potential security incidents.
  • Compliance violations: Failure to meet regulatory requirements due to uncontrolled resource creation.
  • Inconsistent configurations: Uncontrolled resource creation can lead to inconsistent configurations across environments.
3. Single Control and Management Plane:

Managing a complex cloud environment can be a challenge. This principle advocates for a unified control plane, simplifying the process of managing your entire Azure Landing Zone from a central location.

Principle: Utilize a unified control plane to simplify the management of your entire Azure Landing Zone from a central location.

Potential Consequences of Deviation:

  • Increased operational overhead: Managing resources across disparate tools and interfaces becomes time-consuming and error-prone.
  • Reduced visibility: Difficulty in gaining a holistic view of the entire cloud environment.
  • Compliance challenges: Maintaining consistent configurations across multiple management tools becomes difficult.
4. Application-Centric Service Model:

Your cloud journey is ultimately about your applications. This principle ensures your landing zone is designed to effectively support the deployment, management, and scalability of your applications, not just infrastructure.

Principle: Design your landing zone to effectively support the deployment, management, and scalability of your applications.

Potential Consequences of Deviation:

  • Deployment delays: A landing zone not optimized for application deployment can slow down the time it takes to get applications up and running.
  • Scaling challenges: Difficulty in scaling applications efficiently due to resource limitations or infrastructure constraints.
  • Increased development complexity: Developers may need to work around limitations of the landing zone architecture.

Read: Quick Reference guide on AWS Landing Zone

By adhering to these key design principles and understanding the potential consequences of deviations, you can leverage Azure Landing Zones to create a secure, efficient, and well-organized foundation for your cloud migration and ongoing operations on Microsoft Azure.

3. Azure Landing Zone Architecture: Building a Secure and Scalable Cloud Foundation

An Azure landing zone isn’t just a collection of resources; it’s a meticulously designed environment built on eight key design areas. These areas provide a framework to design, implement, and govern your secure, scalable, and well-organized cloud environment on Microsoft Azure.

Read: 8 key design principles to build robust cloud application architectures

Conceptual Blueprint: Your Landing Zone Foundation

The conceptual landing zone architecture serves as a blueprint, a starting point you can adapt to your specific needs. It outlines eight key design areas that work together to create a secure and efficient foundation: Below Diagram is from Microsoft Azure Documentation, it covers all the 8 design areas.

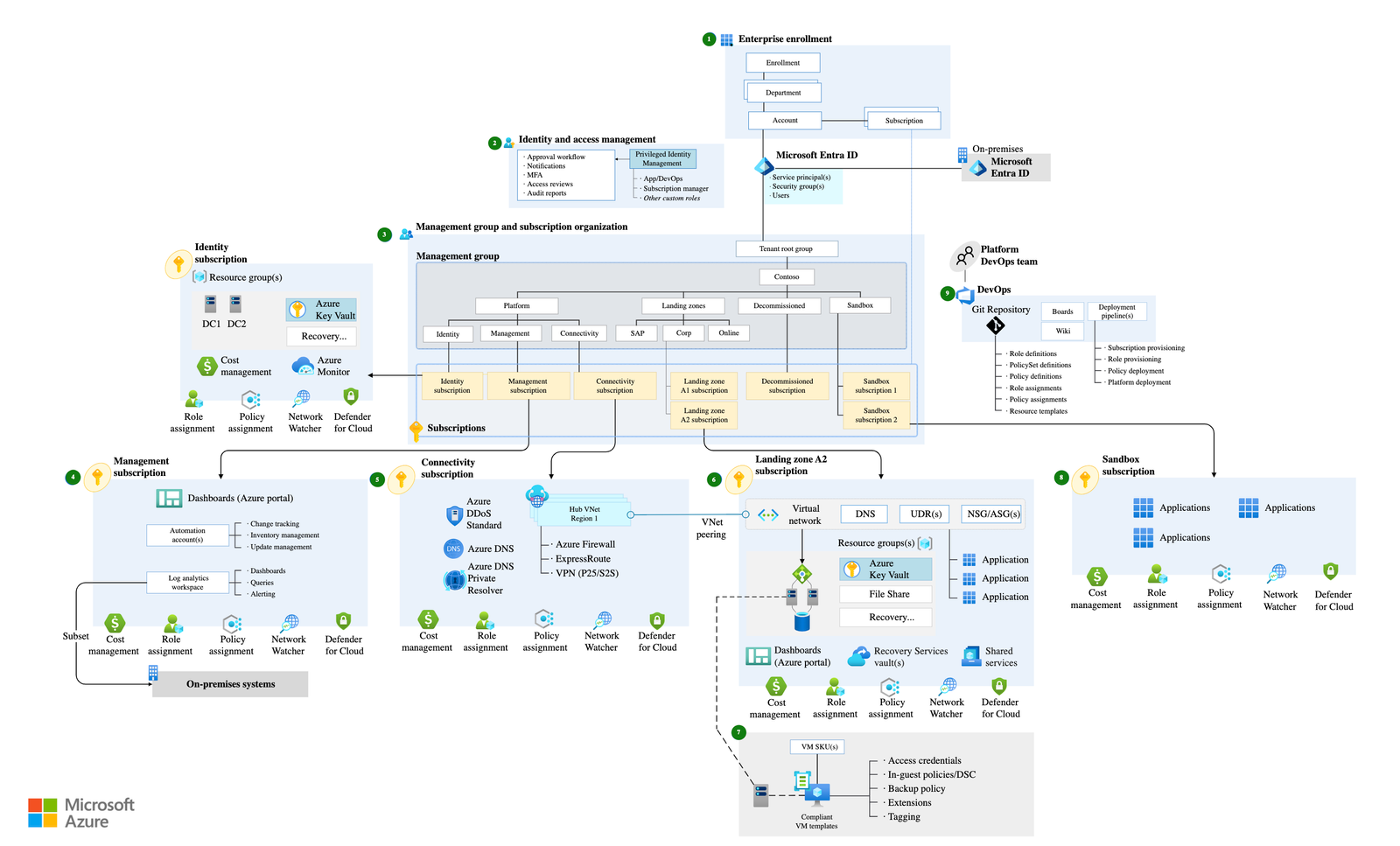

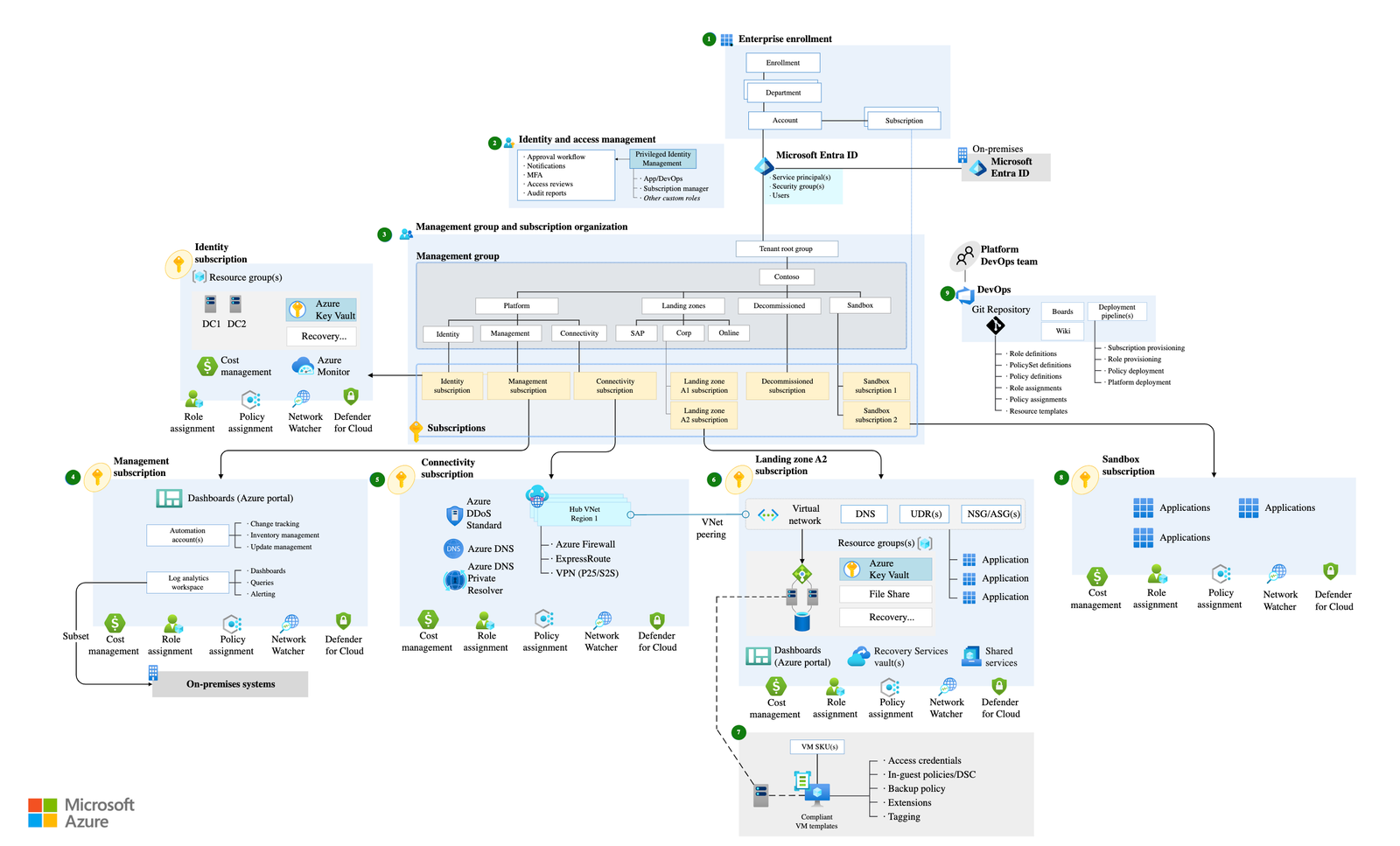

Aure LZ reference architecture

  1. Azure billing and Microsoft Entra tenant (A): Establishes billing structure and Azure Active Directory tenant for access and spending controls.
  2. Identity and access management (B): Defines how users and applications authenticate and gain authorized access to resources within your landing zone.
  3. Resource organization (C): Focuses on organizing resources with subscriptions and management groups. Subscriptions create isolated units, while management groups establish a hierarchy for policy and access control.
  4. Network topology and connectivity (E): Outlines how resources communicate with each other and the internet (e.g., virtual networks, peering).
  5. Security (F): Details strategies for securing your Azure environment against cyber threats and potential data breaches.
  6. Management (D, G, H): Encompasses deployment, automation, monitoring, and logging for streamlined operations.
  7. Governance (C, D): Defines management and control for your landing zone, including policies to enforce security and compliance.
  8. Platform automation and DevOps (I): Emphasizes automating infrastructure and application deployment using tools like ARM templates and Azure DevOps for speed and consistency.

By understanding these design areas and their interactions, you can tailor the architecture to your organization’s specific requirements. We will explore these design areas in detail in the following sections to gain a deeper understanding of their purpose, benefits, and implementation considerations.

Benefits of a Conceptual Architecture:

  • Customization: Provides a starting point to design a landing zone that meets your unique needs.
  • Scalability: Offers a modular architecture that can grow and adapt alongside your organization.
  • Consistency: Establishes a repeatable infrastructure for consistent configuration and control.

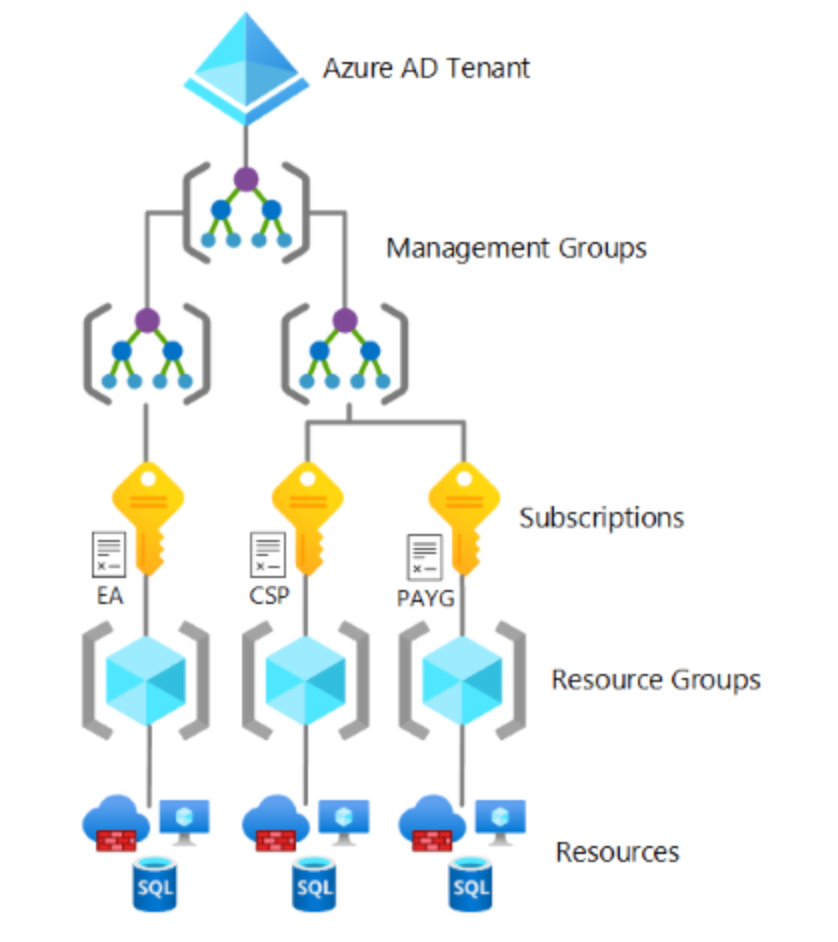

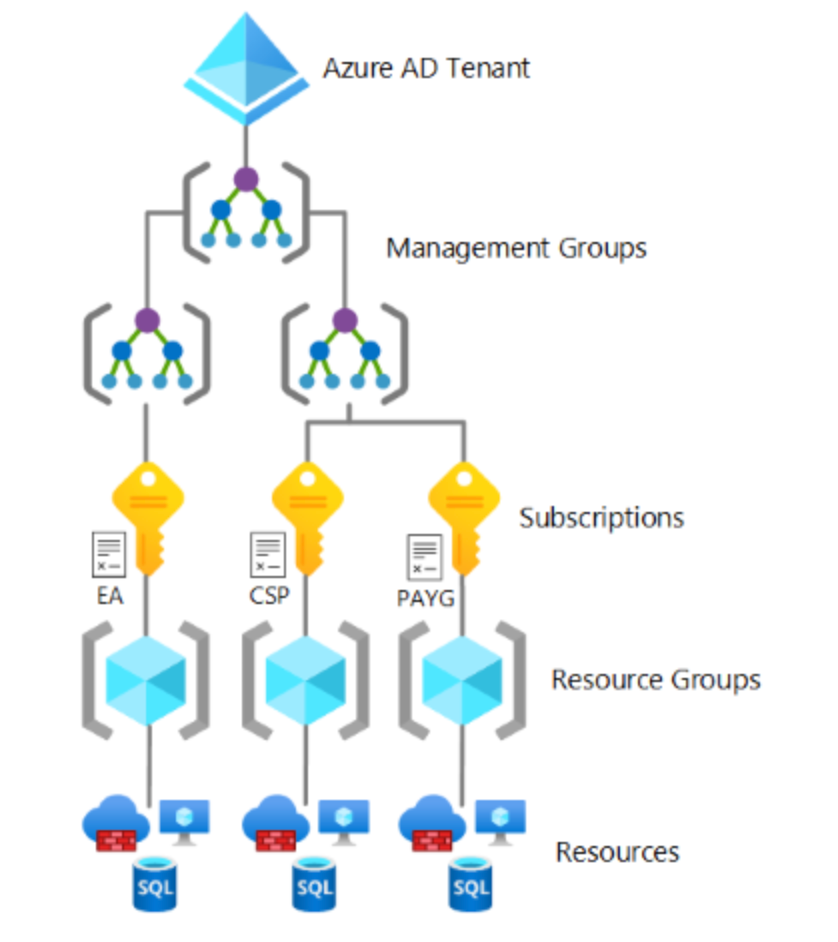

Landing Zone Core Components:

The conceptual architecture relies on several core components to organize, secure, and manage Azure resources effectively:Azure LZ core components

  • Management Groups: These act as containers for subscriptions, enabling centralized policy application and resource management. You can create a hierarchical structure for granular control. For example, a “Finance” group can manage subscriptions related to financial applications.
  • Subscriptions: These represent isolated environments within Azure, each with a unique identifier, quota, and resource limits. They serve as the fundamental unit of billing and access control. The architecture recommends two primary types:

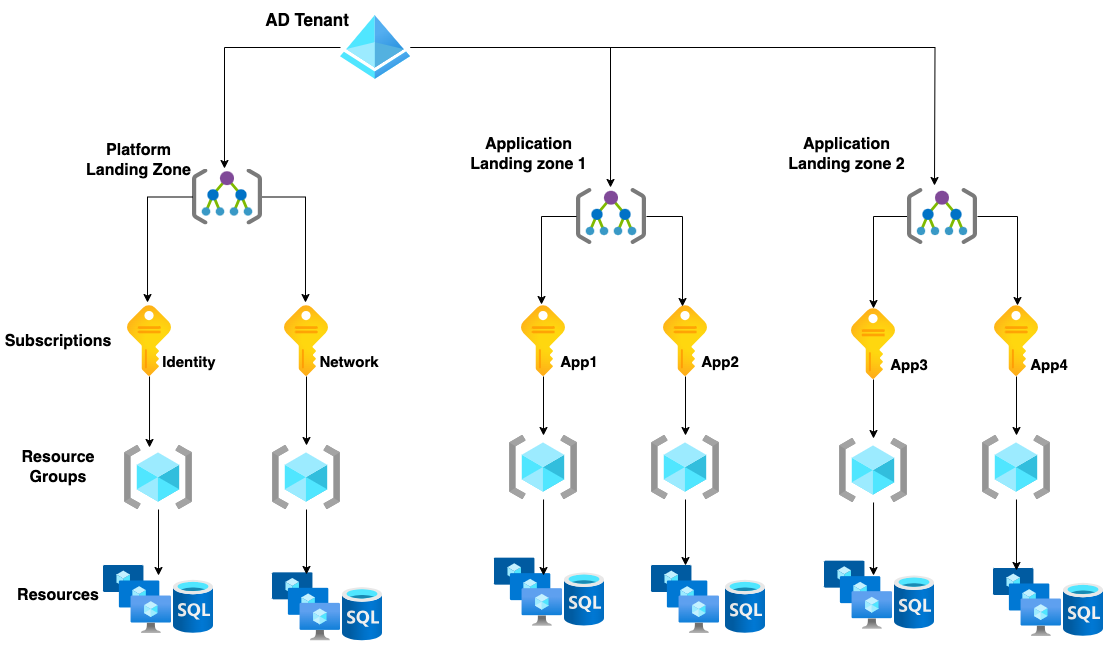

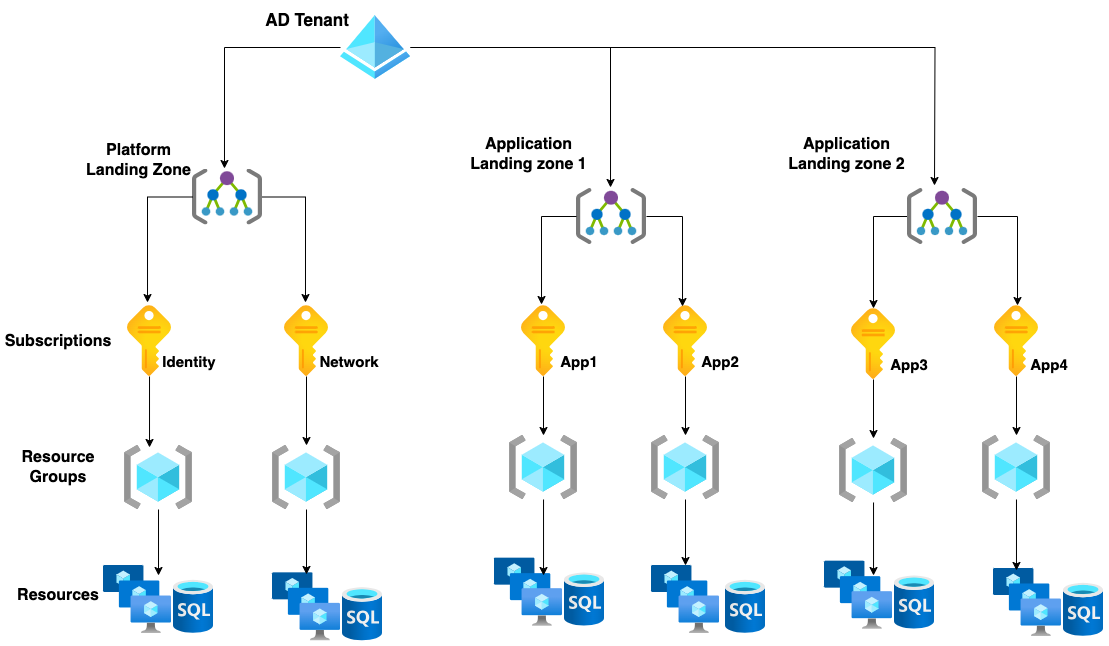

    • Platform Landing Zones: Contain shared services used by multiple applications (e.g., identity and logging).
    • Application Landing Zones: Host individual applications and their associated resources.
  • Resource Groups: These logically group related Azure resources within a subscription for easier management (e.g., a web application with its virtual machine, web app service plan, and storage account).
  • Azure Active Directory (AAD): This critical service manages user identities and access to Azure resources. It acts as a central directory for defining users, groups, and their access permissions. Within the landing zone, AAD integrates with role-based access control (RBAC) to grant users the necessary permissions.

These core components work together to establish a secure and well-organized foundation for your Azure workloads. By effectively utilizing them, you can build an Azure landing zone that is both efficient and scalable for your specific cloud adoption journey.

4. Azure Landing Zone Key Design Areas

Azure Landing Zones are built upon eight key design areas. Understanding these areas is crucial for successful implementation. They fall into two broad categories:

  • Environment Design Areas: Focus on the technical foundation of your Azure presence, including billing, identity, networking, and resource structure.
  • Compliance Design Areas: Ensure your environment adheres to security, governance, and operational best practices to support your business needs.

Understanding these areas and their considerations is crucial for effectively planning and implementing Azure Landing Zone.

Azure Landing Zone Key Design Areas Summary Table

CategoryDesign AreaPurposeKey Considerations
EnvironmentBilling & Active DirectoryFinancial & Identity FoundationBilling Model (Pay-As-You-Go vs. Enterprise Agreements),
Dedicated Active Directory Tenant ,
Cost Allocation Models
EnvironmentIdentity & Access Management (IAM)Secure User Access & PermissionsCentralized Identity (Azure AD),
Role-Based Access Control (RBAC),
Least Privilege Principle ,
Azure AD Privileged Identity Management (PIM)
EnvironmentNetwork Topology & ConnectivitySecure & Efficient Network DesignVirtual Networks (VNets) & Subnets,
Hybrid Connectivity (Optional),
Network Security Groups (NSGs)
EnvironmentResource OrganizationLogical Structure & GovernanceSubscriptions (Dev/Test/Prod),
Management Groups,
Resource Groups ,
Naming Conventions
ComplianceSecurityProtect Your EnvironmentSecurity Baselines & Encryption,
Network Security Groups (NSGs),
Azure Security Center ,
Data Classification & Security Controls
ComplianceManagementOperational Health & VisibilityAzure Monitor (Logging & Alerting),
Log Analytics Workspaces,
Logging & Monitoring Requirements,
Disaster Recovery (DR) Plan
ComplianceGovernancePolicy Enforcement & ComplianceAzure Policy & Blueprints,
Cost Management & Tagging,
Security Policies & Compliance Requirements,
Policy Automation & Auditing
CompliancePlatform Automation & DevOpsStreamline Deployments & EfficiencyInfrastructure as Code (IaC),
CI/CD Pipelines,
Version Control,
Infrastructure Automation & Repeatability

Environment Design Areas

Azure Landing zones begin with a solid technical foundation. Environment design areas focus on the core structural elements of your cloud presence. This includes defining your Azure billing and identity models, designing your secure networks (including if you need connections back to on-premises networks), and intelligently organizing resources for optimal governance, cost management, and operational ease. The decisions made in these areas will directly influence your ability to scale, manage costs, and maintain a secure cloud environment.

1.Azure Billing and Active Directory Tenant:
    • Purpose: Establishes a clear financial and identity foundation for your cloud journey.
      • Establish a clear billing model for your Azure usage.
      • Create a dedicated Active Directory tenant to manage user identities and access securely.
    • Key Considerations:
      • Billing Model: Choose the most cost-effective option based on usage patterns (pay-as-you-go vs. Enterprise Agreements with committed spending).
      • Active Directory Tenant: Create a dedicated tenant for your Azure resources, separate from any on-premises Active Directory environment (optional).
      • Choose the right Azure pricing model (Pay-As-You-Go, Reserved Instances, etc.) based on your resource usage patterns.
      • Define clear ownership and cost allocation models for subscriptions and resource groups to track spending for different departments or projects.
      • Integrate Azure Cost Management with your existing financial management tools for holistic cost visibility.
    • Example:
      • Creating an Azure Active Directory tenant for user authentication and authorization.
      • Setting up billing for your Azure subscription, including defining spending limits and cost allocation models.
      • Configuring Azure Cost Management services for monitoring and optimizing cloud spending.
2. Identity and Access Management (IAM):
    • Purpose: Defines how users access and interact with Azure resources securely.
      • Control user authentication and authorization.
      • Implement granular permissions to protect Azure resources.
    • Key Considerations:
      • Centralized Identity: Leverage Azure Active Directory (Azure AD) for user authentication and authorization across your cloud environment.
      • Role-Based Access Control (RBAC): Assign granular permissions using roles (Owner, Contributor, Reader) to control what users can do with specific resources (subscriptions, resource groups).
      • Establish the principle of least privilege as a core security principle.
      • Utilize Azure Active Directory Privileged Identity Management (PIM) for controlling access to highly sensitive resources.
      • Regularly review and audit user access privileges to ensure they remain appropriate.

Read: Cloud Architecture 101: Identity and Access Management

    • Example:
      • Implementing Azure Active Directory roles and groups to assign specific permissions to users and applications.
      • Enforcing least privilege by granting users only the access they need to perform their tasks.
      • Utilizing Azure Multi-Factor Authentication (MFA) to add an extra layer of security for user logins.
3. Network Topology and Connectivity:
    • Purpose: Designs a secure and efficient network infrastructure for your cloud resources.
      • Design secure and segmented virtual networks tailored to your application needs.
      • Establish hybrid connectivity between Azure and on-premises environments, if needed.
    • Key Considerations:
      • Virtual Networks (VNets): Create logically isolated networks for specific workloads or environments (development, production).
      • Subnets: Segment VNets further based on security needs (e.g., separate subnet for web servers, database servers).
      • Hybrid Connectivity (Optional): Establish secure connections between your on-premises network and Azure (ExpressRoute, VPN).
      • Design your network topology based on security requirements, performance needs, and traffic flow between resources.
      • Implement network segmentation using virtual networks and subnets to isolate critical workloads.
      • Define clear rules for network security groups to allow only authorized traffic.
    • Example:
      • Designing virtual networks within Azure to isolate workloads and improve security.
      • Configuring network security groups (NSGs) to control inbound and outbound traffic for your resources.
      • Establishing secure connections between your on-premises infrastructure and your Azure Landing Zone using VPN gateways or Azure ExpressRoute.
4. Resource Organization:
    • Purpose: Establishes a logical structure for managing and governing Azure resources.
      • Structure resources for logical organization, optimized cost management, and streamlined governance.
    • Key Considerations:
      • Subscriptions: Create separate subscriptions for development, testing, and production environments to isolate costs and resources.
      • Management Groups: Organize subscriptions hierarchically for centralized policy application and simplified governance across departments.
      • Resource Groups: Group related resources (VMs, storage accounts) together for easier deployment, management, and access control.
      • Define a clear and consistent naming convention for your resources to simplify identification and management.
      • Utilize management groups strategically to avoid overly complex hierarchies.
      • Align resource organization with your team structure and access control needs.
    • Example:
      • Utilizing subscriptions to group resources based on purpose (e.g., development, testing, production).
      • Employing resource groups to organize related resources within a subscription (e.g., web application resources).
      • Leveraging management groups to apply policies and governance controls across multiple subscriptions.

Compliance Design Areas

A successful cloud adoption journey requires adherence to security standards, regulations, and company policies. Compliance design areas focus on establishing the tools and processes for safeguarding your Azure environment. This includes implementing proactive security measures, ensuring visibility and monitoring operations, defining policy-driven governance to manage configurations at scale, and automating deployments for consistency and reduced errors. The emphasis here is on maintaining a secure and auditable cloud environment that supports your business objectives.

5. Security:
    • Purpose: Implements safeguards to protect your cloud environment from unauthorized access, data breaches, and other threats.
      • Protect your cloud environment from unauthorized access and data breaches.
      • Implement strong security baselines, encryption, and threat detection measures.
    • Key Considerations:
      • Security Baselines: Define a baseline standard for security configuration across all Azure resources.
      • Encryption: Encrypt data at rest and in transit for enhanced protection.
      • Network Security Groups (NSGs): Implement firewalls to control inbound and outbound network traffic.
      • Azure Security Center: Utilize Azure Security Center for threat detection, vulnerability scanning, and security recommendations.
      • Identify and classify your data based on its sensitivity to determine appropriate security controls.
      • Regularly conduct security assessments and penetration testing to identify and address vulnerabilities.
      • Implement a robust incident response plan to effectively respond to security breaches.
    • Example:
      • Implementing Azure Security Center to monitor your Landing Zone for potential security vulnerabilities.
      • Configuring Azure Defender for key Azure services to provide threat detection and incident response.
      • Encrypting sensitive data at rest and in transit using Azure Key Vault and encryption services.
6. Management:
    • Purpose: Establishes processes and tools for monitoring, logging, and maintaining visibility into your Azure environment.
      • Ensure operational health and visibility for proactive maintenance.
      • Leverage monitoring, logging, and alerting mechanisms.
    • Key Considerations:
      • Azure Monitor: Leverage Azure Monitor for logging (activity logs, diagnostics logs) to track resource health and performance.
      • Alerting: Configure alerts within Azure Monitor to notify administrators of potential issues (high CPU usage, security threats).
      • Log Analytics: Utilize Log Analytics workspaces for advanced log analysis and troubleshooting.
      • Define clear logging and monitoring requirements for your Azure resources.
      • Automate configuration management as much as possible to ensure consistency and compliance.
      • Regularly test your disaster recovery plan to ensure its effectiveness.
    • Example:
      • Implementing Azure Monitor for logging and analyzing resource activity within your Landing Zone.
      • Defining and enforcing configuration management policies using tools like Azure Policy to ensure consistent resource configurations.
      • Establishing disaster recovery (DR) strategies to ensure business continuity in case of outages.
7. Governance:
  • Purpose: Defines policies and procedures to enforce compliance with organizational standards and regulations.
      • Enforce organizational policies and compliance standards.
      • Manage configuration and costs using Azure Policy and tagging.
  • Key Considerations:
    • Azure Policy: Create policies to restrict resource types (disallow expensive VM sizes), locations (enforce specific regions), and apply naming conventions.
    • Azure Blueprints: Use blueprints for repeatable, standardized deployments that include policy configurations.
    • Cost Management: Leverage Azure Cost Management tools to monitor spending, create budgets, and analyze cost trends.
    • Tagging: Tag resources consistently (e.g., environment, department) for better cost tracking and reporting.
    • Define clear and well-documented security policies based on your organization’s risk tolerance and compliance requirements.
    • Leverage Azure Policy and other automation tools to enforce these policies consistently across your Landing Zone.
    • Establish a process for ongoing monitoring and auditing of your cloud environment for compliance adherence.
  • Example:
    • Defining and enforcing security policies that govern user access, data protection, and resource management.
    • Automating the auditing and enforcement of these policies using Azure Policy and other tools.
    • Maintaining compliance with industry regulations like HIPAA or PCI DSS by implementing appropriate security controls.
8. Platform Automation and DevOps
  • Purpose: Streamline deployments, increase consistency, and promote operational efficiency in your cloud environment.
    • Streamline deployments and configuration changes to reduce errors.
    • Promote consistency and agility in your cloud environment.
  • Key Considerations:
    • Infrastructure as Code (IaC): Adopt IaC practices using tools like ARM templates or Terraform to define and deploy resources as code.
    • CI/CD Pipelines: Implement CI/CD (Continuous Integration/Continuous Delivery) with tools like Azure DevOps or GitHub Actions to automate testing, deployment, and configuration changes.
    • Version Control: Use a version control system (e.g., Git) to track changes and manage rollbacks for IaC and application code.
    • Design your Landing Zone infrastructure for automation and repeatability using tools like ARM templates.
    • Integrate CI/CD pipelines with your development process for faster and more reliable deployments.
    • Implement version control for your IaC configurations to track changes and ensure consistency.
          •
  • Example:
    • Utilizing Azure Resource Manager (ARM) templates to automate the deployment of your Landing Zone infrastructure.
    • Implementing continuous integration and continuous delivery (CI/CD) pipelines for deploying and updating applications within your Landing Zone.
    • Leveraging infrastructure as code (IaC) tools like Terraform to manage and automate the configuration of your cloud resources.

5. Azure Landing Zone Architectural Approaches

Azure Landing Zone architecture offers flexibility in implementation based on your organization’s needs and technical expertise. Here’s a breakdown of the three primary approaches to help you choose the best fit:

1. Cloud Adoption Framework (CAF) Aligned:

  • The CAF aligned approach leverages Microsoft’s standardized Cloud Adoption Framework (CAF) for deploying Azure landing zones.
  • CAF provides a structured methodology for cloud adoption, and the landing zone aligns with the “Ready” phase, focusing on establishing a secure foundation for your cloud workloads.
  • This approach is ideal for organizations seeking a well-defined process with clear guidance and best practices.

2. Enterprise-Scale Landing Zones:

  • Enterprise-scale landing zones provide a pre-configured, modular architecture designed for large-scale deployments.
  • It leverages infrastructure-as-code (IaC) using tools like Azure Resource Manager (ARM) templates, enabling consistent and automated deployment across multiple environments.
  • The modular design allows you to customize specific components like security policies or network configurations to meet your specific requirements.
  • This approach is suitable for organizations with large and complex cloud deployments requiring a high degree of automation and repeatability.

3. Custom Landing Zones:

  • Custom landing zones cater to organizations with unique requirements that may not be fully addressed by the pre-configured options.
  • This approach allows for complete control over the architecture, enabling you to tailor each component to your specific needs.
  • However, building and maintaining a custom landing zone requires a high level of technical expertise in Azure services and IaC tools.
  • This approach is best suited for organizations with experienced cloud teams and specific needs not addressed by the other options.

Choosing the Right Approach

The optimal approach depends on several factors, including:

  • Organizational size and complexity
  • Cloud adoption experience
  • Technical expertise
  • Specific business requirements

For organizations starting their cloud journey, the CAF aligned approach offers a structured and guided path. For larger organizations with complex needs, the enterprise-scale landing zone provides a robust and scalable foundation. Finally, custom landing zones cater to unique requirements, but necessitate a high level of technical expertise.

6. Organizing Your Azure Landing Zone for Efficiency and Security

A well-organized Azure landing zone is essential for a secure, efficient, and scalable cloud environment. Strategic resource organization provides clear structure for managing resources, with key benefits:

  • Enhanced Security: Isolate workloads for targeted access controls, and ensure resources adhere to compliance guidelines.
  • Cost Optimization: Track costs by workloads or departments for tailored spending controls.
  • Operational Efficiency: Updates, troubleshooting, and policy enforcement are simplified with a logical structure.
Segregating Platform and Application Landing Zones

Azure leverages subscriptions and management groups to achieve optimal organization. Subscriptions act as isolated units with their own quota and billing. Landing zones leverage subscriptions strategically to create two key environments:

Azure Platform Landing zone vs Application Landing zone

  • Platform Landing Zones: These are the foundation for your entire landing zone. They host shared services used by multiple applications, such as:
    • Identity and Access Management (IAM): Azure Active Directory (AAD) centrally manages user access for all applications.
    • Connectivity: A virtual network configuration provides secure communication channels.
    • Management: Azure Monitor and Azure Policy offer centralized logging, monitoring, and policy enforcement.
  • Application Landing Zones: These dedicated environments host individual applications and their associated resources. They provide:
    • Simplified Deployment: Applications are deployed and managed within their own secure environments.
    • Enhanced Security: Isolation minimizes the risk of security breaches.
    • Scalability: Application landing zones can be scaled independently based on application needs.
Azure Landing Zone Accelerators

Building your landing zone architecture from scratch can be a time-consuming and resource-intensive task. To address this challenge, Microsoft offers two tools to streamline the deployment process:

  • Platform Landing Zone Accelerator: This tool provides a pre-configured platform landing zone with built-in security, governance, and operations functionalities. It offers a quick and reliable way to establish a secure foundation for your Azure environment.
  • Application Landing Zone Accelerators: These are pre-defined templates for application landing zones tailored to specific deployment scenarios, such as web applications, databases, or batch processing. They provide a starting point for quickly provisioning isolated and secure environments for your applications.

These landing zone accelerators can significantly reduce the time and effort required to set up your Azure environment, allowing you to focus on deploying and managing your applications faster.

By implementing a well-defined resource organization strategy with platform and application landing zones, you can establish a secure, scalable, and manageable foundation for your Azure workloads. Leveraging landing zone accelerators further streamlines the deployment process, allowing you to get your cloud environment up and running quickly.

7. Reference Azure Landing Zone Architectures

Microsoft provides several reference architectures to guide you in the design and implementation of your Azure landing zones. These act as blueprints, offering a foundation upon which you can customize to suit your specific needs.

Choosing right Reference Architecture for Azure Landing Zones

Reference ArchitectureIdeal ForFocusConsiderations
Foundational Landing ZoneSmall to medium organizations or those new to AzureBasic infrastructure for core functionalitiesSimpler to manage, good starting point for initial cloud adoption
Enterprise-Scale Landing ZoneLarge organizations, complex cloud environmentsScalability, modularity, robust securityStrong governance and security best practices for large deployments
Scenario-Specific Reference ArchitecturesWorkloads with specific needs or industry regulationsAddress unique workload or compliance requirementsExamples: AKS (container orchestration), mission-critical workloads, industry-specific regulations

1. Foundational Landing Zone

A starter reference architecture providing a basic set of core infrastructure components. This is a good starting point for smaller organizations or those new to Azure.

  • Ideal for: Small to medium-sized organizations or those in the early stages of cloud adoption.
  • Focus: Provides a basic yet structured environment with core elements:
    • Identity and access management (Azure AD)
    • Basic networking (perhaps a single virtual network and subnets)
    • Governance and policy foundations
    • Logging and monitoring capabilities
  • Advantage: Simpler to understand and manage, faster deployment.

2. Enterprise-Scale Landing Zone

A sophisticated architecture designed to scale and support the demands of large enterprise environments. It emphasizes modularity, governance, and security best practices.

  • Ideal for: Large organizations, complex cloud environments, and those with strong governance requirements.
  • Focus: Scale, modularity, and security best practices
  • Components: In addition to the foundational elements, often includes:
    • Multiple management groups for enhanced organization
    • Designated landing zones for connectivity, identity, and management
    • Robust network topology (hub-and-spoke, peering)
    • Advanced security policies and controls
  • Advantage: Can adapt and grow with your needs, strong focus on governance and security for large-scale deployments.

3. Scenario-Specific Reference Architectures

Microsoft and the broader Azure community provide reference architectures tailored to specific use cases. Examples include:

  • Focus: Address specific workload needs or industry-standard requirements.
  • Examples:
    • AKS (Azure Kubernetes Service): Emphasis on container orchestration, best practices for deploying and managing Kubernetes.
    • Mission-critical Workloads: Might include geo-redundancy, high availability zones, and stricter disaster recovery processes.
    • Industry-Specific Architectures: Aligning with regulations like HIPAA (healthcare), FedRAMP (government), or PCI-DSS (payment card industry).
  • Advantage: Provide tailored guidance and optimization for demanding or regulated workloads.
Considerations When Choosing

When selecting a reference architecture, consider the following factors:

  • Organization size: Larger organizations with complex needs will likely benefit from the modularity of an Enterprise-Scale Landing Zone.
  • Cloud Maturity: If your organization is new to Azure, a Foundational Landing Zone offers a simpler starting point.
  • Workload Requirements: Scenario-specific architectures might be best suited to applications with unique security or performance needs.
  • Compliance: If you need to meet specific regulatory standards, consider reference architectures tailored to those requirements.

Note: Reference architectures provide a solid foundation, but will likely require customization to align perfectly with your organization’s unique needs.

8. Azure Landing Zone Deployment Options: Choosing the Right Path

The flexibility of Azure landing zones extends to the deployment process. Microsoft offers a variety of options to cater to different technical skillsets and project requirements. Let’s explore the four primary deployment methods:

1. Azure Portal:
  • Visual and Guided Approach: The Azure portal provides a user-friendly interface for deploying basic landing zone configurations.
  • Ideal for: Organizations new to Azure or those seeking a guided approach with visual elements. The portal walks you through the creation of resource groups, subscriptions, and basic security configurations.
  • Limitations: While user-friendly, the Azure portal offers limited customization compared to other methods. It may not be suitable for complex deployments or those requiring infrastructure as code (IaC).
2. ARM Templates:
  • Infrastructure as Code (IaC): ARM templates allow you to define your landing zone infrastructure in a declarative code format. This code specifies the resources you want to deploy and their configurations.
  • Benefits: ARM templates offer several advantages:
    • Automation: You can automate the deployment process, ensuring consistency and repeatability across environments.
    • Version Control: Treat your landing zone configuration as code, enabling version control and collaboration.
    • Scalability: Easily scale your landing zone by modifying the ARM template and redeploying.
  • Ideal for: Organizations with experience in IaC and a desire for greater control and automation over their landing zone deployment.
3. Terraform:
  • Declarative Provisioning Across Multiple Cloud Platforms: Terraform is an open-source IaC tool that goes beyond Azure. It allows you to define infrastructure for multiple cloud platforms using a single configuration language.
  • Benefits: Terraform offers similar advantages to ARM templates, such as automation, version control, and scalability. Additionally, it provides platform-agnostic configuration management.
  • Ideal for: Organizations with experience in IaC and a multi-cloud strategy. Terraform’s flexibility allows you to manage infrastructure across different cloud providers.
4. Azure Landing Zone Accelerator:
  • Pre-built Templates and Guidance: Microsoft offers the Azure Landing Zone Accelerator as a pre-configured solution to jumpstart your landing zone deployment. It provides ARM templates and deployment scripts along with best practices guidance.
  • Benefits: The accelerator simplifies and accelerates the deployment process, particularly for organizations new to Azure landing zones.
  • Ideal for: Organizations seeking a rapid starting point for their landing zone with a solid foundation built on Microsoft best practices.
Choosing the Right Option:

The optimal deployment method depends on several factors:

  • Technical Expertise: The Azure portal requires minimal technical knowledge, while ARM templates and Terraform necessitate a strong understanding of IaC tools.
  • Project Requirements: For simple deployments, the portal might suffice. Complex deployments or those requiring IaC benefit from ARM templates or Terraform.
  • Automation Needs: If automation is a priority, ARM templates or Terraform offer significant advantages.
  • Experience with Azure: Organizations new to Azure might find the Azure Landing Zone Accelerator a valuable starting point.

9. Azure Landing Zone Best Practices

A well-designed Azure landing zone serves as the cornerstone for a secure, scalable, and efficiently managed cloud environment. Here are some key best practices to consider when implementing your Azure landing zone:

1. Leverage the Cloud Adoption Framework (CAF):

  • The Microsoft Cloud Adoption Framework (CAF) provides a structured methodology for cloud adoption, including guidance on designing and deploying Azure landing zones.
  • Aligning your landing zone with CAF principles ensures you establish a secure foundation that follows industry best practices.

2. Resource Organization with Management Groups and Subscriptions:

  • Implement a hierarchical structure using management groups to organize subscriptions within your landing zone.
  • Utilize subscriptions strategically to create separate environments for platform (shared services) and application (specific workloads) landing zones.
  • This segregation promotes security, simplifies management, and enhances governance.

3. Implement Strong Identity and Access Management (IAM):

  • Azure Active Directory (AAD) is the central service for managing user identities and access permissions within your landing zone.
  • Enforce the principle of least privilege, granting users only the access required to perform their tasks.
  • Utilize role-based access control (RBAC) to define granular access permissions for resources within each landing zone.

4. Prioritize Security Throughout the Design:

  • Integrate security considerations into every aspect of your landing zone architecture.
  • Implement security policies at the platform and application levels to enforce compliance standards.
  • Utilize Azure Security Center for continuous monitoring, threat detection, and vulnerability management.

5. Embrace Infrastructure as Code (IaC):

  • Leverage IaC tools like ARM templates or Terraform to define your landing zone infrastructure in code.
  • IaC promotes automation, consistency, repeatability, and version control for your landing zone deployment and configuration.

6. Design for Automation and DevOps:

  • Integrate your landing zone deployment process with your DevOps pipeline for continuous integration and continuous delivery (CI/CD).
  • Automate infrastructure provisioning, configuration management, and security patching for increased efficiency and reduced risk.

7. Continuously Monitor and Optimize:

  • Continuously monitor your landing zone for performance, security threats, and resource utilization.
  • Utilize Azure Monitor for centralized logging and performance insights.
  • Regularly review and optimize your landing zone architecture to ensure it aligns with evolving business needs and security best practices.

8. Choose the Right Deployment Option:

  • Select the deployment method that best suits your technical expertise and project requirements.
  • The Azure portal offers a user-friendly interface for simple deployments, while ARM templates and Terraform provide greater control and automation for complex scenarios.
  • Consider the Azure Landing Zone Accelerator for a pre-configured solution to jumpstart your landing zone deployment.

9. Focus on Governance and Compliance:

  • Establish clear governance policies and procedures for managing resources within your landing zone.
  • Define roles and responsibilities for managing access, security, and compliance.
  • Regularly audit your landing zone to ensure adherence to governance policies and compliance regulations.

10. Start Small, Iterate: Begin with Basic Landing Zones and Evolve

  • Don’t be overwhelmed by the idea of building a complex landing zone from the start. Begin with a foundational landing zone that addresses your core requirements.
  • This initial deployment allows you to gain experience with Azure landing zones and establish a secure foundation.
  • As your cloud adoption matures and your needs evolve, you can iteratively add functionalities and complexities to your landing zone architecture.

11. Continuously Learn and Adapt:

  • The cloud landscape is constantly evolving. Stay updated on the latest Azure features, best practices, and security recommendations.
  • Regularly review and adapt your landing zone architecture to leverage new functionalities and address emerging security threats.

By following these best practices, you can build a robust and secure Azure landing zone that fosters efficient cloud adoption and empowers your organization to innovate and scale in the cloud.

10. Summary

Azure Landing Zones empower you to establish a secure, scalable, and well-governed foundation for your cloud adoption on Microsoft Azure. This blog post has explored the key design areas, architectural approaches, and deployment options to guide you in creating an effective landing zone strategy.

Key Takeaways

  • Structured Approach: Azure landing zones provide a standardized architecture for deploying cloud resources, promoting consistency and organization within your Azure environment.
  • Resource Organization: By utilizing subscriptions and management groups, you can logically separate platform (shared services) and application (specific workloads) landing zones, enhancing security, governance, and manageability.
  • Flexibility: Landing zones cater to diverse deployment scenarios through reference architectures like foundational, enterprise-scale, and specialized architectures for AKS clusters or mission-critical workloads.
  • Automation: Infrastructure as code (IaC) with ARM templates or Terraform enables automated deployment and configuration management, streamlining the landing zone creation process.
  • Security Focus: Landing zones prioritize security by integrating strong identity and access management (IAM) with Azure Active Directory and implementing security policies at platform and application levels.
  • Best Practices: Following best practices like leveraging the Cloud Adoption Framework (CAF), continuous monitoring, and iterative development ensures a well-governed and adaptable landing zone.

Read: Generative AI Basics and Fundamentals

The Future: Potential Advancements

  • Integration with Azure Arc: Extending landing zone governance and management to on-premises and other cloud environments.
  • Integration with DevOps Tools: Expect deeper integration between Azure landing zones and DevOps tools, enabling seamless deployment of applications within a secure landing zone environment.
  • AI-powered Automation: Artificial intelligence (AI) could play a more prominent role in automating landing zone configuration and resource optimization, further streamlining cloud management.
  • Hybrid Cloud Support: Landing zones might evolve to handle hybrid cloud deployments more effectively, allowing easier integration and management of on-premises resources with Azure resources.

11. Conclusion

Azure Landing Zones empower you to streamline your cloud adoption, maximize security, and optimize resource management. Consider these core principles when embarking on your cloud journey:

  • Start with a clear purpose: Define what your organization aims to achieve in the cloud.
  • Embrace a strategic approach: Use Microsoft’s Cloud Adoption Framework for guidance and align your landing zone with your broader cloud goals.
  • Prioritize security and compliance: Build security into every layer, and leverage tools like Azure Policy to enforce your organization’s standards.
  • Iterate and optimize: Your landing zone should evolve alongside your changing business needs and cloud expertise.

By thoughtfully planning your Azure Landing Zone using the strategies discussed, you set the stage for streamlined innovation, efficient resource utilization, and a secure, scalable cloud presence.

Building a robust Azure Landing Zone is an ongoing journey! Let’s keep the conversation going:

  • Share Your Experiences: Did you implement a Landing Zone? What challenges did you encounter, and what successes did you achieve? Please comment your insights which can be helpful to others.
  • Ask Your Questions: Are there any specific areas of a Landing Zone design you’d like to explore further? Don’t hesitate to ask in comment section.
  • Suggest Topics: Are there related areas of Azure architecture that you’d like to see covered in future blog posts? Let us know!
Sponsored Links

You might also like to read

Anil K Y Ommi
Anil K Y Ommihttps://mycloudwiki.com
Cloud Solutions Architect with more than 15 years of experience in designing & deploying application in multiple cloud platforms.

Leave a Reply

AWS Certified Solutions Architect Professional – Free Practice Tests

This AWS practice test helps you to pass the following AWS exams and can also helps you to revise the AWS concepts if you...
